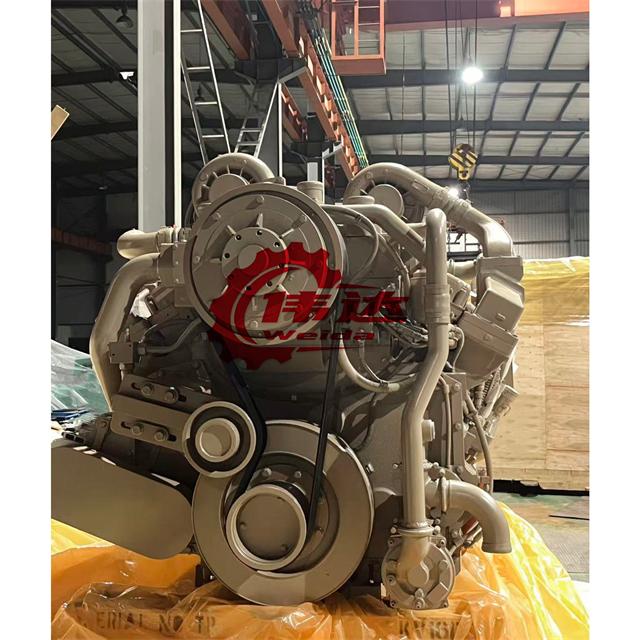

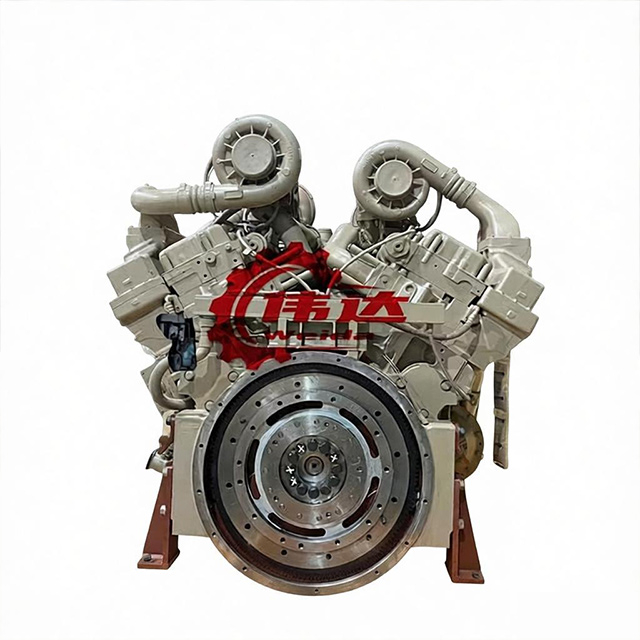

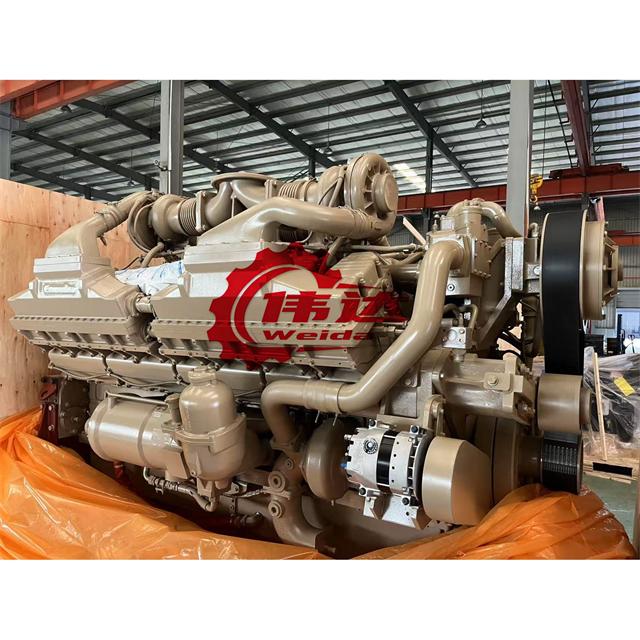

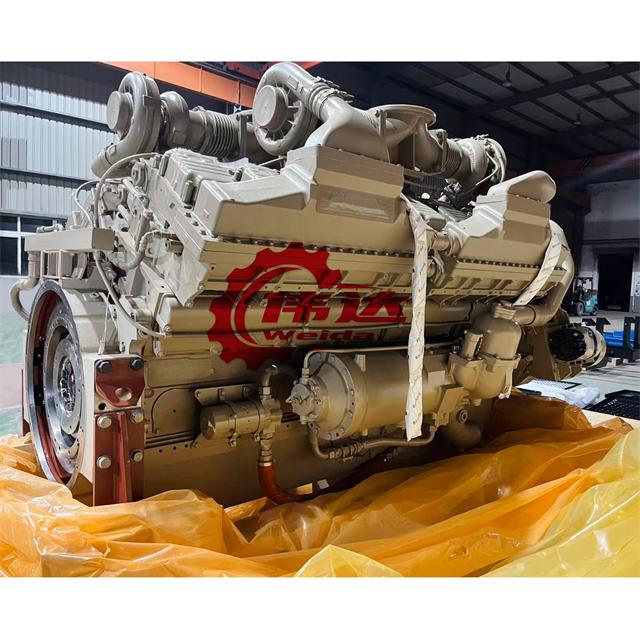

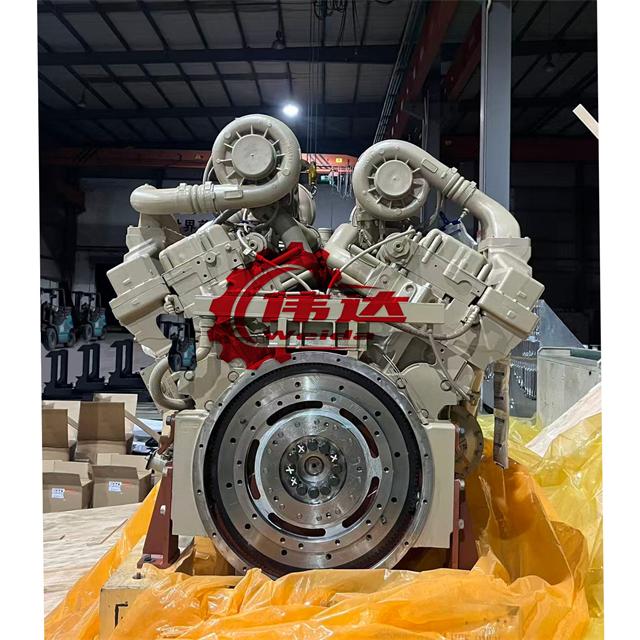

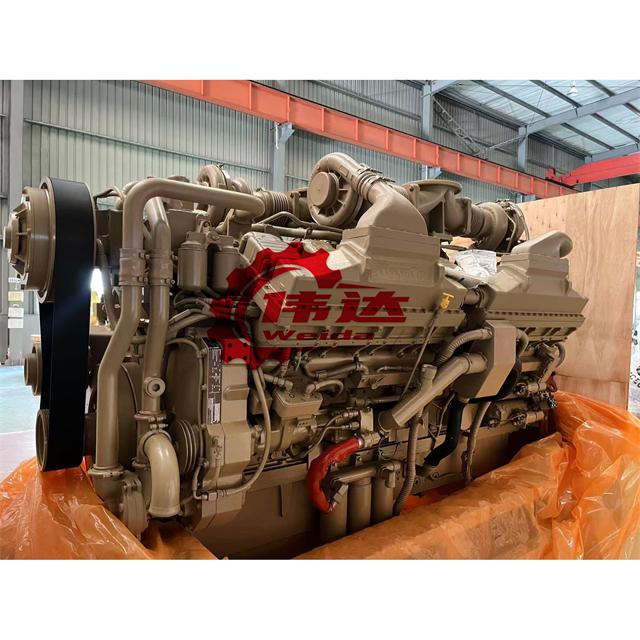

The Cummins QSK60-C2500 is a heavy-duty, 16-cylinder V-type diesel engine assembly engineered primarily for ultra-class mining machinery, large construction equipment, and massive haul trucks (such as Belaz and Komatsu models).
Core Specifications
· Displacement: 60.2 L (3673 in³)
· Horsepower: 2500 HP (1865 kW to 2238 kW depending on the application rating)
· Configuration: 16-cylinder, 4-stroke, V-block
· Bore & Stroke: 159 mm × 190 mm (6.26 in × 7.48 in)
· Aspiration: Turbocharged and low-temperature aftercooled
Key Design Features
· Fuel System: Utilizes advanced electronic injection management (either High-Pressure Injection or Modular Common Rail systems depending on the generation and emissions tier) to optimize combustion efficiency and minimize emissions.
· Robust Structure: Built with a high-strength cast-iron V-block designed for continuous-duty mining environments, featuring metric O-ring seals and edge-molded gaskets to prevent fluid leaks.
· Electronics: Incorporates Cummins Quantum System electronics with a proven Electronic Control Module (ECM) for real-time parameter monitoring, diagnostics, and full engine protection.
